Loading and unloading pick up manipulator multi axis small robot arm for industrial
Product description:
With the rapid development of industrial automation, the utilization rate of industrial robots can obviously represent the speed of industrial transformation.Industrial robots mainly include single-axis robots and multi-axis robots. Compared with single-axis robots, multi-axis robots have more degrees of freedom, can move freely in a certain space, and complete motion operations at almost any angle. Multi-axis robots can complete fully automated work through free programming, which can be significantly reduced Production error rate. This robot is a highly collaborative multi-axis robot that can be programmed freely and supports wireless control. It has 4 axes, payload of 1kg, repetitive position accuracy of 0.05mm, work space of 540mm, without a control cabinet. It is mainly used for picking and placing small parts and small objects.
Feature:
1. Easy to learn and operate,can learn programming in 15 minutes
2. Cost effective
3. The repeatable positioning accuracy is less than 0.05mm.
4. Software can be secondary developing
5. Wireless wifi control
6. Online technical support
Robot parameter
| Products Name | Loading and unloading multi axis small robot arm |
| Working space | 540mm |
| Number of axis | 3 axis ,4 axis,5 axis |
| Installation | Floor/desktop |
| N.W. | 13kg |
| Repeat Positioning Accuracy | ±0.05mm |
| Maximum Payload | 1kg |
| Power Consume | 0.4KVA |
| Power supply | Input:Single phase 110V-240V 50Hz Output:DC 24V(400W) |
| Voltage rating | 220V |
| External communication | WIFI/Ethernet |
| Application | picking and place, loading, sorting,gluing,palletizing |
| Safety standard | ISO 9001-2015 |
| Control software | Hulkbot Studio |
| Drive System | Steper motor |
| Working condition | -10°C~60°C |
| I/O | Input 5/Output 5 |
Working rang of each axis
| Axis | Working Range | Max Speed |
| Axis 1 | ±160° | 360°/s |
| Axis 2 | -42°~85° | 360°/s |
| Axis 3 | -20°~100° | 360°/s |
| Axis 4 | ±165° | 500°/s |
Application fields
1. Our products have been used by German companies
2. Auto parts fields
3. Lock screw
4. 3C industray
5. Vocational education
6. Sorting
7. Palletizing
8. Food processing
9. Handling
10. Loading and unloading

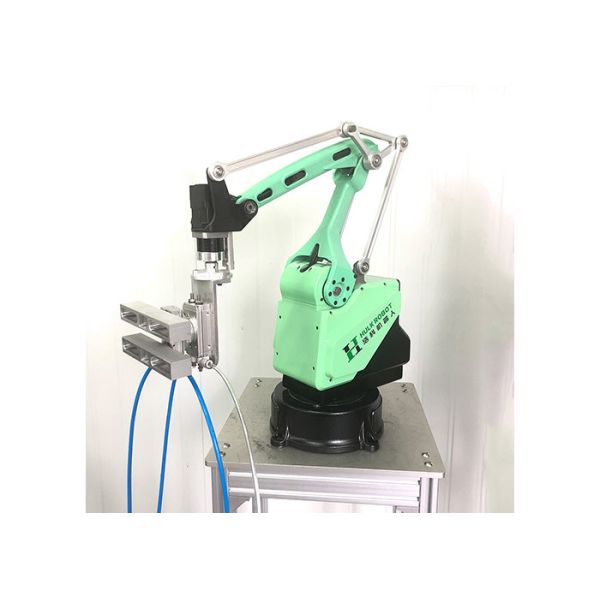

Detailed images
